The rotary evaporator is the most misunderstood piece of equipment in the modern bar — treated either as a magic trick or as a money pit. It is neither. It’s a precision instrument for separating flavor from everything you don’t want, and once you understand its parts and its logic, it becomes as workmanlike as a juicer. This is the guide I wish someone had handed me before my first distillation.
What vacuum distillation actually does
At sea level, water boils at 100°C — hot enough to cook the life out of delicate aromatics. Under vacuum, boiling points collapse: pull enough pressure out of the system and liquids boil at 30–40°C, barely warmer than your hand. That’s the whole trick. The rotovap lets you evaporate and re-condense the volatile, aromatic fraction of almost any liquid at temperatures low enough that fresh, green, floral notes survive intact — flavors that a still or a stovetop would burn away.

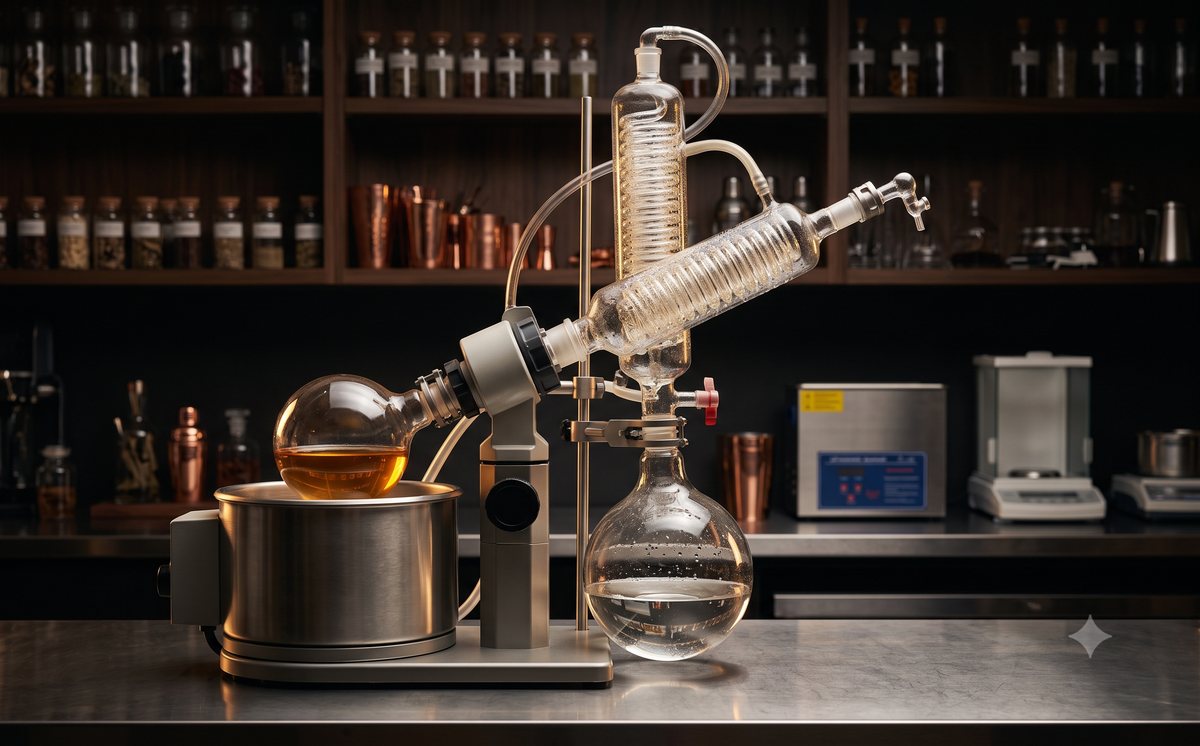

The anatomy of the instrument
A rotovap is a system of ten components, each with one job:
- Evaporating flask — holds your liquid and rotates, spreading it into a thin film for fast, even evaporation.
- Rotation motor and drive — spins the flask; speed is a real variable, not a formality.
- Heating bath — the controlled-temperature water bath the flask sits in.
- Vapor duct — carries vapor from flask to condenser.
- Condenser — chilled coils that turn vapor back into liquid.
- Receiving flask — collects the distillate.
- Vacuum pump — drops the system pressure, and with it the boiling point.
- Vacuum controller — holds the pressure exactly where you set it.
- Temperature controller — keeps the bath honest (most baths have one built in).
- Chiller — supplies the condenser with cooling capacity; without it, vapor sails past uncollected.
Assembly, once
Set up in this order and you’ll never fight the machine: vapor duct to condenser; condenser to receiving flask; evaporating flask into the bath and onto the drive; vacuum pump to condenser via the controller; chiller connected and filled with the manufacturer’s specified anti-freeze mix. Check every ground-glass joint. A rotovap that won’t hold vacuum is almost always a joint problem, not a pump problem.
Running it
Fill the evaporating flask no more than half full — the thin film does the work, not the volume. Start rotation before you pull vacuum, bring the bath to temperature, and let the vacuum controller walk the pressure down until you see steady, calm evaporation. Fast is not the goal; controlled is the goal.
When things go wrong
- Sluggish evaporation — rotation too slow, bath too cool, or vacuum too shallow. Adjust one variable at a time.
- Bumping and foaming — the liquid is boiling violently. Lower the bath temperature or the rotation speed, and check that the flask isn’t overfilled for its size.
- Condenser overload — vapor escaping past the coils. Ease the vacuum, slow the feed, and confirm the chiller is actually delivering its rated cooling.
Cleaning is part of the craft
Disassemble and clean components individually: mild detergent and warm water for the glass, rinsed with distilled water; a soft cloth for the bath once residue is dissolved; a damp — never wet — wipe-down for motor, pump, controllers, and chiller. Inspect joints and seals for wear, replace the chiller fluid on the manufacturer’s schedule, and let everything air-dry completely before reassembly. A dirty rotovap doesn’t just underperform; it cross-contaminates every distillate that follows.
Does it earn its keep?
The honest test for any bar considering a rotovap: does the menu impact justify the invoice? One signature distillate that anchors three drinks and can’t be bought from a supplier — that’s a machine paying rent. A rotovap bought for the Instagram post is a very expensive shelf ornament. Specify equipment to the menu, never the other way around.
The rotovap doesn’t make you creative. It makes your creativity repeatable — at flavor fidelity nothing else in the bar can touch.
